CP1N044, Wall Mount Offset Back Plate Hinge for 3/8' to 1/2' glass

MODEL# CP1N044

Glass Cutout Compatible with Pinnacle 044 Series Style
Wall Mount Offset Back Plate Hinge for Frameless Shower DoorFeaturesMATERIALBrassAdjustableNOEdge ProfileBeveledMounting TypeWall/Ceiling MountBack PlateOffsetGlass to Glass/Wall Angle (Degree)90°5 Degree Pre-SetNOGlazing Thickness (inches)3/8" to 1/2"Glass Fabrication RequiredYES Height (inches)3 1/2"Self-CenteringYESMax. Door Width for 2 Hinges (inches)28"Max. Door Width for 3 Hinges (inches)32"Width (inches)2 3/16"5 Degree Pre-SetNOMax. Door Weight for 2 Hinge (lbs)80 LBSMax. Door Weight for 3 Hinge (lbs)120 LBS

• Available in Several Beautiful Finishes; polished chrome; matte black; brushed nickel and satin brass

SPECIFICATIONS:

Glass Thickness: 3/8" to 1/2"

Hinge Swings: 90 degree in and 90 degree Out

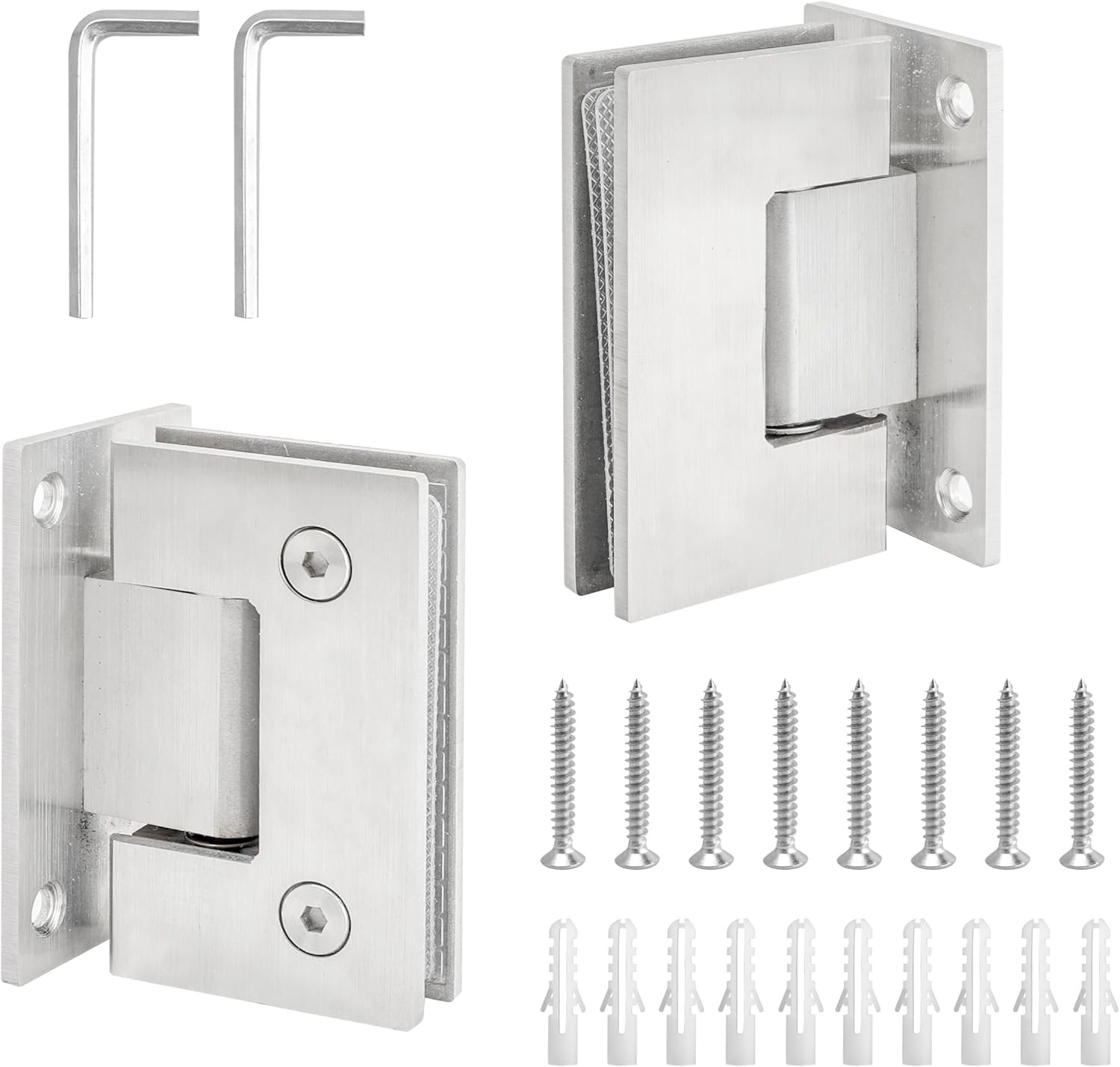

Included: Hinge Body, Gaskets, Screws and Template

Use for Residential Bath and Commercial Hotel Applications.

Adjustable to Any Angle Up to 90 Degrees without Removing Door



Gasket:

For 3/8" (10mm) Glass, Use one thick Gasket on each side

For 1/2" (12mm) Glass, Use one thin Gasket on each side



Our wholesale store and warehouse (CEL Glass Hardware Inc.) are located at Brooklyn, NY. If you are looking for lot purchase or specific hinge model or color that are not listing here; please kindly message me! We are looking forward to do business with you!
